Infrastructure

The Infrastructure Aether models your physical estate — from geography down to the cables and power feeds inside a rack. It’s the most complete Aether and the best place to start.

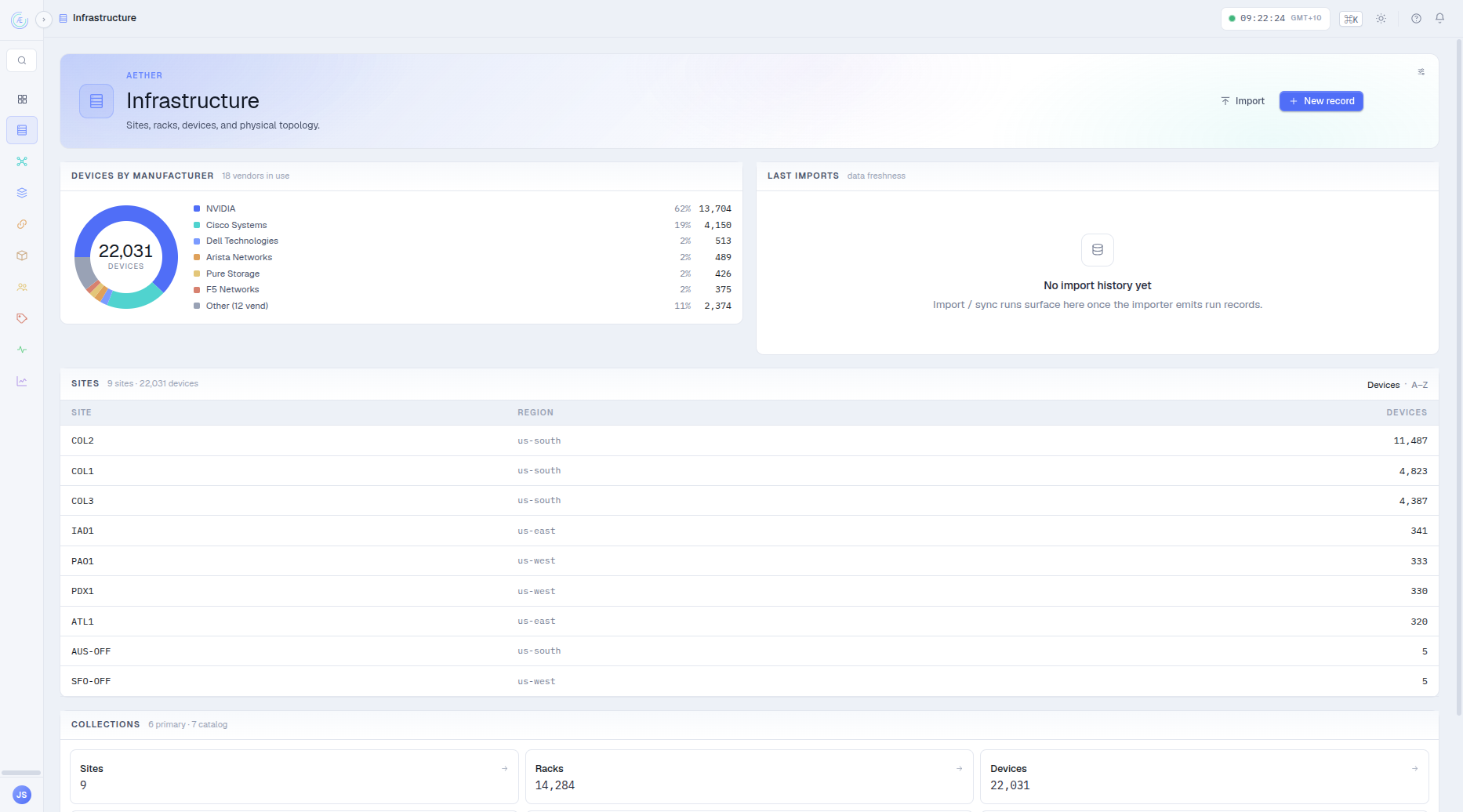

The Devices list with status, site, and rack columns

How it fits together

Two chains meet at the device:

• Geography (top-down): Region → Site → Location → Rack. Build this first so there’s somewhere to place hardware.
• Catalogue (build-up): Manufacturer → Platform / Device Role → Device Type. This describes what a device is, independently of where it sits.

A Device then references a place (site, location, rack, position) and a catalogue entry (type, role, platform, manufacturer).

Note

Every record carries an id (UUID), a createdAt, and an updatedAt — these are omitted from the field tables below. List endpoints accept page, pageSize, search, sort, and order, and return { data, total, page, pageSize, hasMore }.

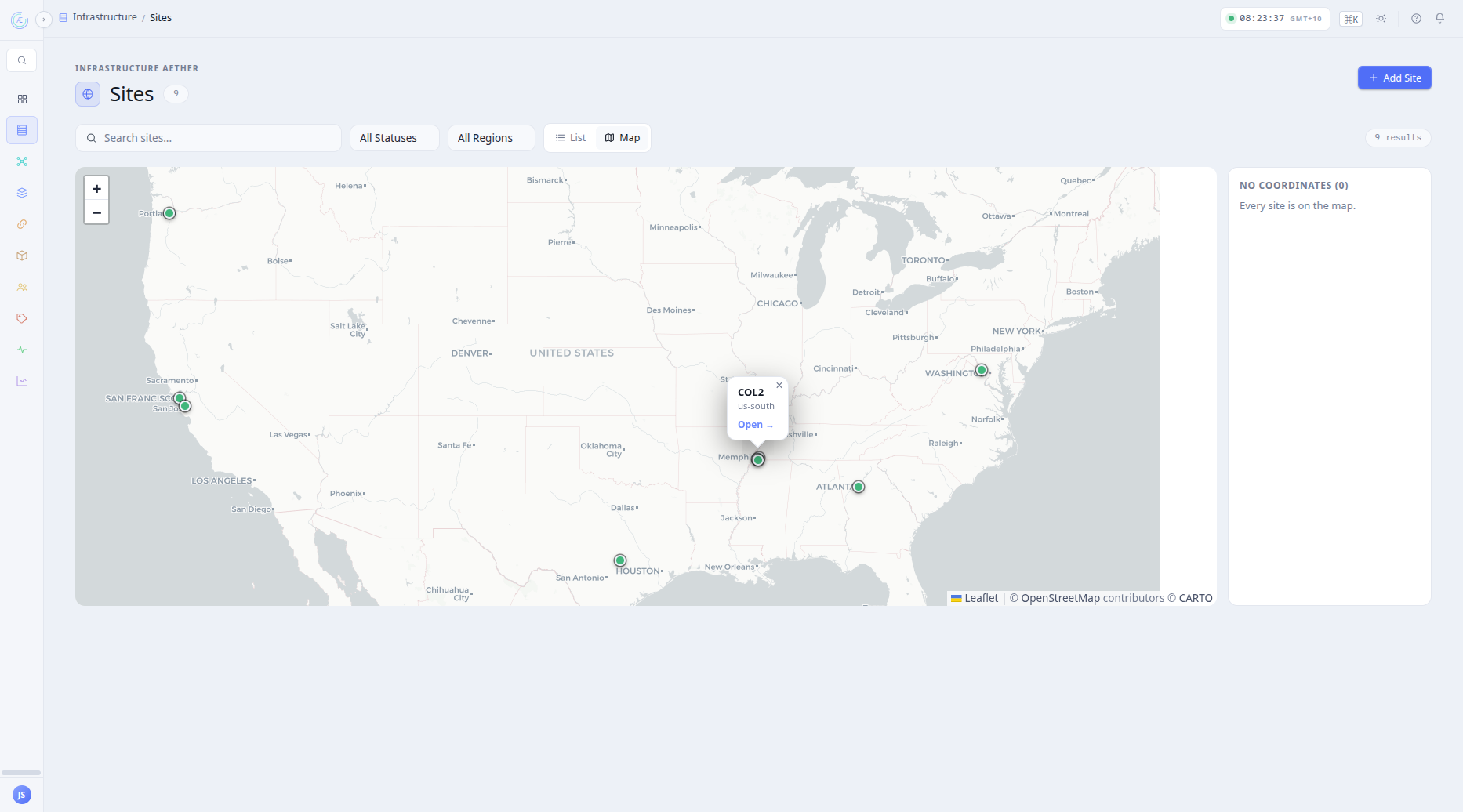

Sites plotted on the world map by their coordinates

Geography

The physical hierarchy. Build it top-down so there’s somewhere to place hardware.

Regions

Geographic groupings for sites — countries, metros, or whatever rollup suits your estate. A site belongs to at most one region; regions carry no parent of their own.

Fields

Field	Type	Notes
name	string · required	Display name.
slug	string · unique	URL-safe identifier; auto-derived from name when omitted.
description	string	Free-form notes.

API — GET/POST /api/regions, GET/PATCH/DELETE /api/regions/{id}. Search spans name, slug, and description.

Sites

Buildings or facilities — the level addresses and coordinates live at. A site optionally rolls up to a region and is the anchor most other records ultimately trace back to.

Fields

Field	Type	Notes
name	string · required	Display name.
slug	string · unique	URL-safe identifier; auto-derived when omitted.
status	enum	active · planned · retired (default active).
regionId	uuid → Region	Optional parent region.
facility	string	Operator / facility name.
address	string	Postal address.
latitude / longitude	decimal	Plots the site on the map view; bounds enforced (±90 / ±180).
description	string	Free-form notes.

API — GET/POST /api/sites, GET/PATCH/DELETE /api/sites/{id}.

Locations

Rooms, halls, floors, or areas within a site — the level racks actually live in. A location optionally references a site and can carry its own address and coordinates so it can be placed as a finer drill-down on the map.

Fields

Field	Type	Notes
name	string · required	Display name.
slug	string	URL-safe identifier; auto-derived when omitted (not unique).
siteId	uuid → Site	Optional parent site.
status	string	Lifecycle status (default active).
address	string	Postal address.
latitude / longitude	decimal	Optional coordinates; bounds enforced (±90 / ±180).
description	string	Free-form notes.

API — GET/POST /api/locations, GET/PATCH/DELETE /api/locations/{id}.

Racks

Cabinets within a site / location, each with a unit-addressed elevation (a height in U that devices are positioned against). The rack detail view renders a front/rear elevation showing which units are occupied.

The Racks page navigates hall by hall — pick a hall (or all of them) and use the toolbar’s “Find rack…” search to filter the elevations and floor grid, jumping straight to a unique match. Power figures auto-scale with the estate (kW below a megawatt, then MW, then GW; CSV exports stay in raw kW). Give a hall real width × length dimensions and it unlocks a to-scale 3D view and designer: the auto-layout places only what the floor can hold — overflow racks wait in an Unplaced tray until you place them — and the designer supports multi-select (shift+click, shift+drag marquee), group move and rotate with collision checking, arrow-key nudge, and undo.

Fields

Field	Type	Notes
name	string · required	Display name.
siteId	uuid → Site	Optional site.
locationId	uuid → Location	Optional location.
units	integer	Height in rack units (default 42).
status	string	Free-form lifecycle string (default active).

API — GET/POST /api/racks, GET/PATCH/DELETE /api/racks/{id}, plus POST /api/racks/bulk ({ items[] }, max 5000) for large-estate imports. List accepts ?siteId= and ?locationId= (UUID or none).

Catalogue

What a device is, described once and reused across every unit you place.

The catalogue is a two-tier model. Rows with source: 'vendor' ship with Aethers and are maintained by the catalog importer — they’re read-only. Rows with source: 'customer' are yours, created via UI/API and never touched by the importer. To edit a vendor row, clone it (POST .../{id}/clone) to get an editable customer-owned copy.

Manufacturers

Hardware vendors — Cisco, Juniper, Dell, and the rest. Referenced by platforms, device types, and devices.

Fields

Field	Type	Notes
name	string · required	Display name.
slug	string · unique	URL-safe identifier; auto-derived when omitted.
description	string	Free-form notes.
productFocus	string	What the vendor primarily builds.
website	string	Vendor URL.
notes	string	Free-form notes.
popular	boolean	Pins the row in pickers (default false).
source	enum	vendor (read-only) · customer (default customer).

API — GET/POST /api/manufacturers, GET/PATCH/DELETE /api/manufacturers/{id}, plus POST /api/manufacturers/{id}/clone.

Note

Manufacturers are served by the Inventory Aether’s route group (requireAetherAccess('asset')) and shared across both Aethers — DELETE additionally requires admin.

Platforms

The network OS a device runs (IOS-XE, NX-OS, Junos, …) — used to group devices by software and to drive port-naming when interfaces are materialised. The nosFamily value feeds the per-vendor port-naming convention.

Fields

Field	Type	Notes
name	string · required	Display name.
slug	string · unique	URL-safe identifier; auto-derived when omitted.
manufacturerId	uuid → Manufacturer	Optional vendor.
description	string	Free-form notes.
nosFamily	string	NOS family; drives port-name conventions on devices.
typicalDevices	string	Hardware this NOS typically runs on.
keyFeatures	string	Notable capabilities.
commonUseCases	string	Where it fits.
commercialStatus	enum	active · eos · eol · limited · open-source.
automationApis	string[]	From NETCONF · RESTCONF · gNMI · gRPC · eAPI · NX-API · JSON-RPC · REST · YANG · NDK · SNMP · Cloud-only.
popular	boolean	Pins the row in pickers (default false).
source	enum	vendor (read-only) · customer (default customer).

API — GET/POST /api/platforms, GET/PATCH/DELETE /api/platforms/{id}, plus POST /api/platforms/{id}/clone. List accepts ?manufacturerId= (UUID or none) for the manufacturer → platforms rollup.

Device Roles

The function a device serves in the topology — leaf, spine, firewall, console server. Roles carry a colour so they read at a glance in lists and elevations.

Fields

Field	Type	Notes
name	string · required	Display name.
slug	string · unique	URL-safe identifier; auto-derived when omitted.
color	string	Hex swatch (default #4F6EF7).
description	string	Free-form notes.
tier	enum	One of access · distribution · core · spine · leaf · border-leaf · ai-fabric · edge · sp-edge · sp-core · customer-edge · branch · security · wireless · storage · compute · mgmt · optical · dci · passive · monitoring.
redundancy	enum	optional · recommended · required.
complianceBaselines	string[]	Baselines the role must meet (default []).
vmRole	boolean	Marks a virtual-machine role (default false).
typicalLocation	string	Where it usually sits.
responsibilities	string	What it does.
popular	boolean	Pins the row in pickers (default false).
source	enum	vendor (read-only) · customer (default customer).

API — GET/POST /api/device-roles, GET/PATCH/DELETE /api/device-roles/{id}, plus POST /api/device-roles/{id}/clone.

Device Types

The model in the catalogue — form factor, height in rack units, power draw, and the module definitions that ports are materialised from. Define the type once; every device of that model inherits it.

Fields

Field	Type	Notes
name	string · required	Model name (also keys the built-in port templates).
slug	string · unique	URL-safe identifier; auto-derived when omitted.
manufacturerId	uuid → Manufacturer	Optional vendor.
description	string	Free-form notes.
modelFamily	string	Product line.
formFactor	enum	fixed · stackable · modular-chassis · half-rack · compact, or a U size (0.5U–21U).
rackUnits	decimal	Height consumed in U.
airflow	enum	front-to-back · back-to-front · reversible · side-to-side · passive.
weightKg	decimal	Weight in kg.
powerIdleW / powerMaxW	integer	Idle / max draw in watts.
poeBudgetW	integer	PoE budget in watts.
keyFeatures	string	Notable capabilities.
typicalDeployment	string	Where it fits.
asicChipset	string	Switching ASIC.
defaultPlatformId	uuid → Platform	Default NOS for devices of this type.
defaultRoleId	uuid → Device Role	Default role for devices of this type.
popular	boolean	Pins the row in pickers (default false).
source	enum	vendor (read-only) · customer (default customer).
status	enum	active · announced · eos · eol (default active).

Modules (device_type_modules) are the swappable uplink / line-card SKUs that extend a chassis (e.g. C9300-NM-4G). Each carries a sku, name, slotLabel, connectorType, speeds[], portCount, poeStandard/poeWatts, and a sortOrder. They’re nested under their device type and managed at GET/POST /api/device-types/{id}/modules and PATCH/DELETE /api/device-types/{id}/modules/{moduleId}.

API — GET/POST /api/device-types, GET/PATCH/DELETE /api/device-types/{id}, plus POST /api/device-types/{id}/clone and the nested module routes above. List accepts ?manufacturerId=, ?defaultPlatformId=, and ?defaultRoleId= (UUID or none).

Note

Removed SKUs are marked status: 'eol' rather than deleted, because customer devices may still reference the type. Cloning a vendor device type copies the chassis spec but not its modules — clone those separately.

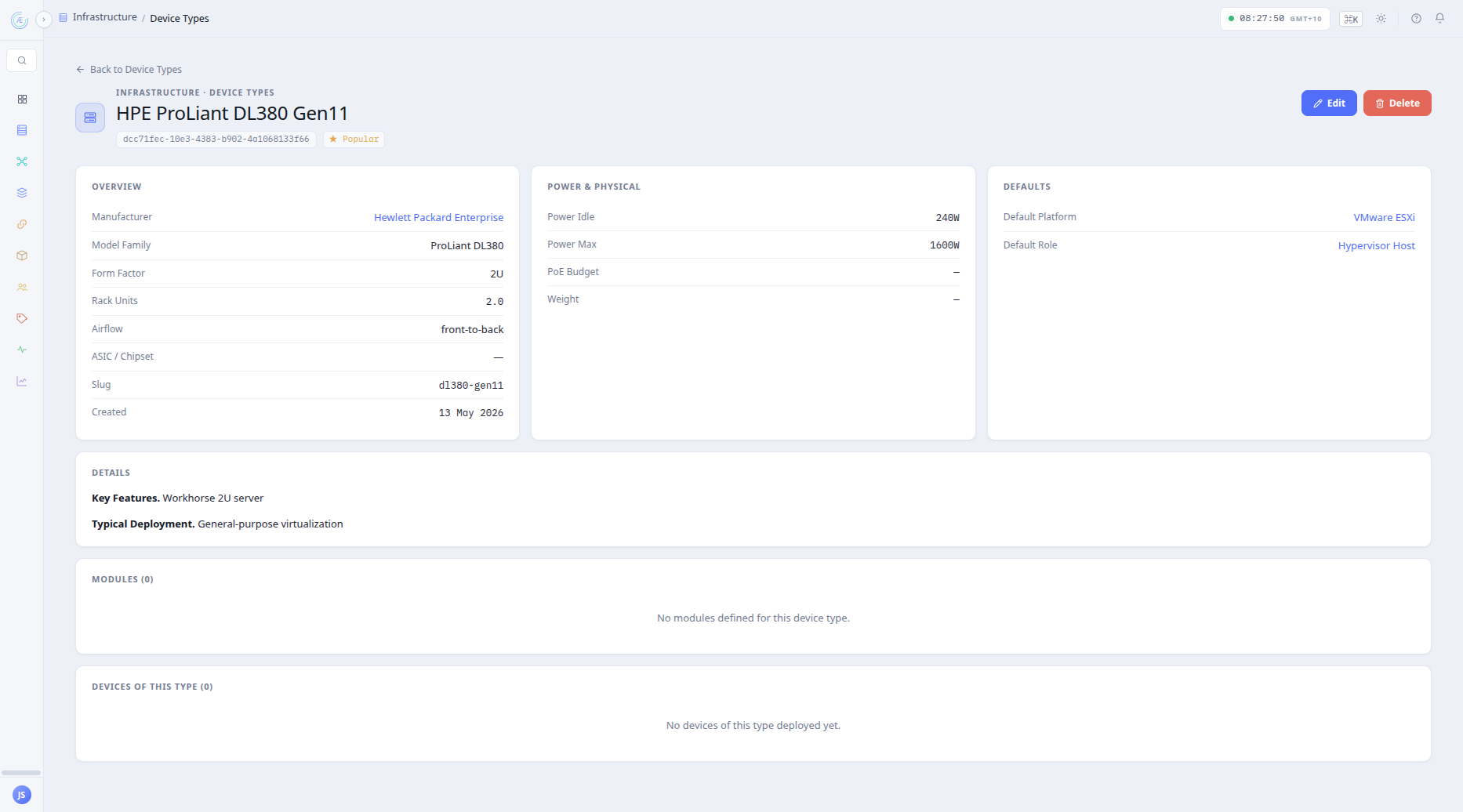

A device type with its rack-unit, power, and module/port definitions

Devices & connectivity

The records that reference everything above, plus the cabling and power that tie them together.

Devices

Physical units placed in racks. A device references a place (site, location, rack, position) and a catalogue entry (type, role, platform, manufacturer). platform (free-text, inline-editable) coexists with the canonical platformId FK; model mirrors the linked device type’s name.

Fields

Field	Type	Notes
name	string · required	Display name.
status	enum	active · planned · staged · offline · decommissioned (default active).
siteId	uuid → Site	Optional placement.
locationId	uuid → Location	Optional placement.
rackId	uuid → Rack	Optional placement; required when position is set.
manufacturerId	uuid → Manufacturer	Optional.
deviceRoleId	uuid → Device Role	Optional.
deviceTypeId	uuid → Device Type	Optional; drives port auto-materialisation on create.
position	integer	Lowest rack unit occupied (≥ 1); needs a rackId.
uHeight	integer	Units consumed (default 1).
platform	string	Free-text NOS label (inline-editable).
platformId	uuid → Platform	Canonical NOS link.
model	string	Mirrors the linked device type’s name.
primaryIp	string	Management IP.
tags	string[]	Chip strip (default []).
serialNumber / assetTag	string	Identifiers.
description / notes	string	Free-form.

API — GET/POST /api/devices, GET/PATCH/DELETE /api/devices/{id}. Extra routes: POST /api/devices/bulk ({ items[] }, max 2000; materialisePorts defaults true), aggregates GET /api/devices/stats, /api/devices/by-site, /api/devices/by-manufacturer, the nested ports routes (GET/POST /api/devices/{id}/ports, PATCH/DELETE /api/devices/{id}/ports/{portId}, POST /api/devices/ports/bulk), and read-only GET /api/devices/{id}/ips. List filters: ?status=, ?siteId=, ?locationId=, ?manufacturerId=, ?deviceTypeId=, ?deviceRoleId=, ?platformId=, ?rackId= (each a UUID or none).

Note

Rack position is overlap-checked. A device occupies units [position, position + uHeight − 1]; a create/edit that collides with another device in the same rack is rejected, and setting a position requires a rackId. On create, ports are auto-materialised from the device type’s fixed modules (else a built-in template, else name inference), so a new switch arrives with its interfaces already populated. Bulk creates skip overlap-checking and FK pre-checks for throughput.

Interfaces

Device ports — Ethernet, console, management, and power inlets. Backed by the device_ports table (there’s no separate “interfaces” table); the page is CRUD over ports, addressable per device or across the whole estate.

Fields

Field	Type	Notes
deviceId	uuid → Device · required	Owning device (cascade-deletes).
name	string · required	Interface name.
portType	string	IEEE-ish media string (default 1000base-t).
status	enum	enabled · disabled · planned (default enabled).
linkStatus	enum	up · down · unknown (default up).
peer	string	Free-text far end (cable peers override in the UI).
vlan	string	VLAN assignment.
lldp	string	LLDP neighbour.
errs	integer	Error counter (default 0).
portGroupLabel	string	Sectional heading on the Interfaces tab.
portIndex	integer	Ordinal; default list sort.
connectorType	string	e.g. RJ45, SFP28, QSFP28.
speeds	string[]	Negotiable speeds (default []).
poeStandard / poeWatts	string / integer	PoE class + budget.
transceiver	string	Installed optic.
mgig	boolean	Multi-gig capable (default false).
breakoutCapable	boolean	Supports breakout (default false).
moduleSlot	string	Owning module slot.
macAddress	string	Burnt-in address.
description	string	Free-form notes.

API — GET/POST /api/interfaces, GET/PATCH/DELETE /api/interfaces/{id}. List accepts ?deviceId= to scope to one device. The same rows are also reachable via the device-nested ports routes under /api/devices/{id}/ports.

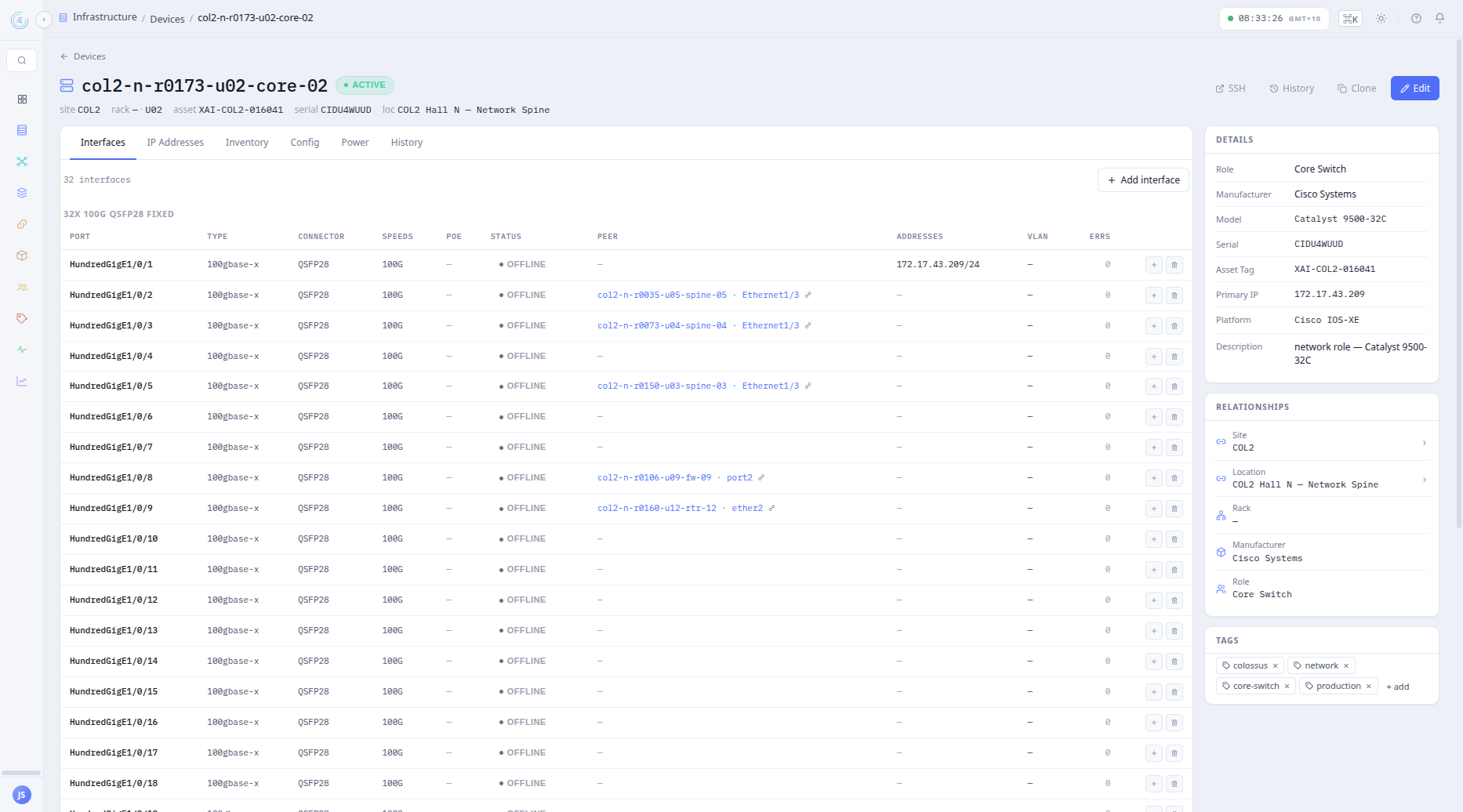

The Interfaces tab listing a device's ports

Cables

Physical interconnect between two device ports, recording both endpoints so you can trace a path end to end. The list/detail responses are enriched server-side with each end’s device and port name.

Fields

Field	Type	Notes
label	string	Optional label.
type	enum · required	cat5e · cat6 · cat6a · cat7 · cat8 · fiber-mm · fiber-sm · sfp · qsfp · dac · aoc · power · usb · serial · other.
status	enum	connected · planned · decommissioning (default connected).
color	string	Jacket colour.
length	decimal	Numeric length.
lengthUnit	enum	m · cm · ft · in.
aPortId	uuid → Interface · required	A-end port (cascade-deletes).
bPortId	uuid → Interface · required	B-end port (cascade-deletes).
description	string	Free-form notes.

API — GET/POST /api/cables, GET/PATCH/DELETE /api/cables/{id}, plus POST /api/cables/bulk ({ items[] }, max 5000).

Note

A cable can’t connect a port to itself — aPortId and bPortId must differ (enforced on create and update, and backed by a DB CHECK constraint). Both ends must reference existing ports.

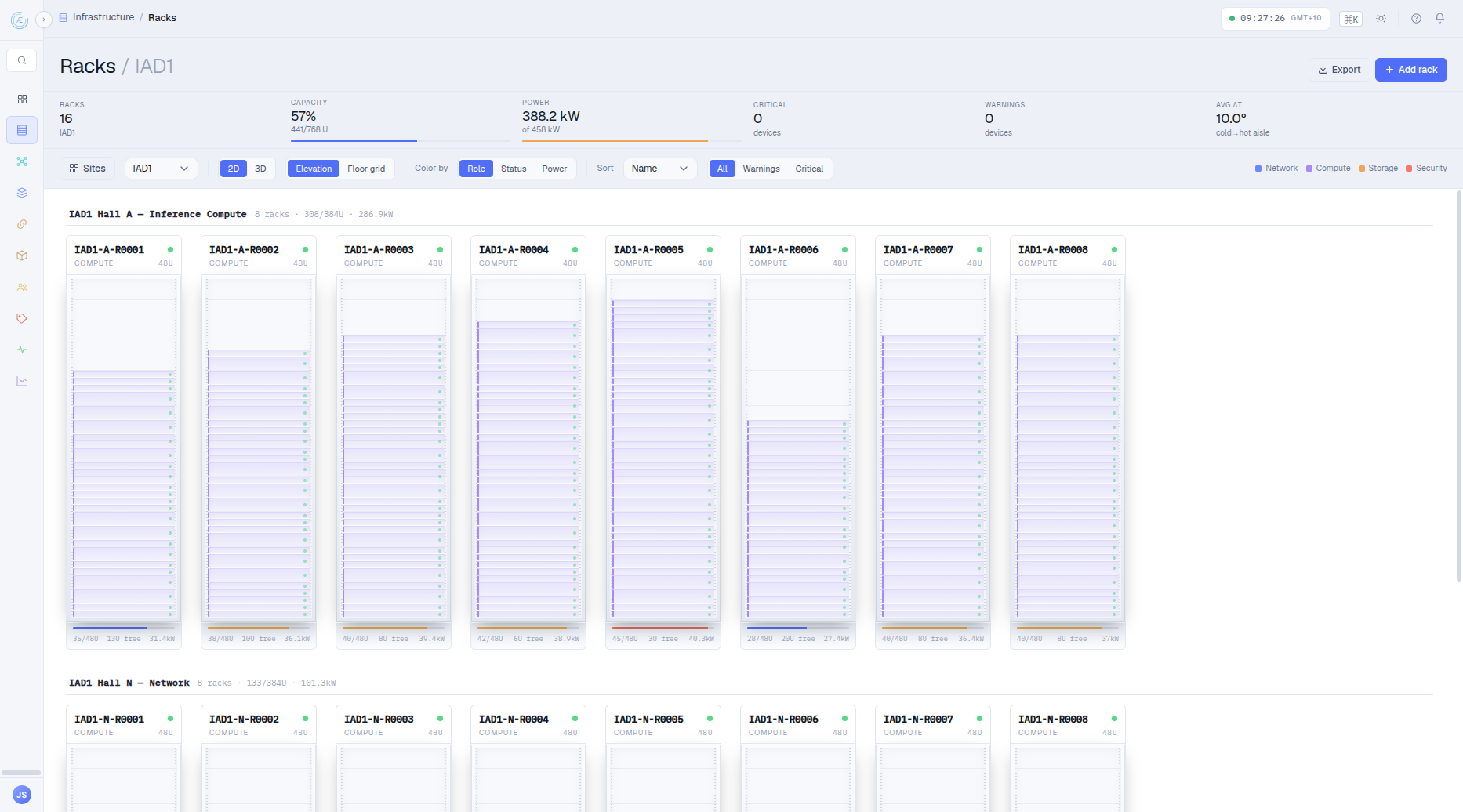

A rack elevation showing units occupied by devices

Power

Power Panels

The physical distribution point that delivers power to downstream feeds (and through them, to racks and devices) — the upstream side of the power chain. A panel is always attached to a site, and optionally a location and rack.

Fields

Field	Type	Notes
name	string · required	Display name.
siteId	uuid → Site · required	Owning site (delete-restricted).
locationId	uuid → Location	Optional location.
rackId	uuid → Rack	Optional rack.
voltage	integer · required	Volts (1–10000).
phase	enum	single · three (default single).
amperage	integer · required	Amps (1–10000).
status	enum	active · planned · offline (default active).
description	string	Free-form notes.

API — GET/POST /api/power-panels, GET/PATCH/DELETE /api/power-panels/{id}. List accepts ?siteId= and ?rackId= (UUID or none).

Note

siteId is mandatory and the FK is delete-restricted — a site with panels attached can’t be removed until the panels are reassigned or deleted.

Power Feeds

One circuit running off a panel — typically to a rack, so the devices in that rack draw power from a known feed. type captures primary-vs-redundant for A/B feed pairs. A device’s Power tab surfaces the feeds available to its rack.

Fields

Field	Type	Notes
name	string · required	Display name.
powerPanelId	uuid → Power Panel · required	Upstream panel (cascade-deletes).
rackId	uuid → Rack	Optional rack served.
type	enum	primary · redundant (default primary).
supply	enum	AC · DC (default AC).
phase	enum	single · three (default single).
voltage	integer · required	Volts (1–10000).
amperage	integer · required	Amps (1–10000).
maxUtilization	integer	Target ceiling in % (1–100, default 80).
status	enum	active · planned · offline (default active).
comments	string	Free-form notes.

API — GET/POST /api/power-feeds, GET/PATCH/DELETE /api/power-feeds/{id}, plus POST /api/power-feeds/bulk ({ items[] }, max 5000). List accepts ?powerPanelId= and ?rackId= (UUID or none).

Power feeds drawn from a panel, with utilisationpublic/screenshots/infrastructure-power-feeds.png

Good to know

• Rack positioning is overlap-checked. A device’s unit range can’t collide with another device in the same rack; a position must be paired with a rackId.
• Ports auto-materialise on create. A new device generates its ports from the device type’s fixed modules, the built-in template map, or name inference — whichever resolves first — so a new switch arrives with its interfaces populated.
• Catalogue rows are two-tier. source: 'vendor' rows are read-only; clone one to get an editable customer-owned copy.
• Bulk endpoints exist for racks, devices, ports, cables, and power feeds when importing at scale — they trade per-row validation for throughput.

API

Every module above is exposed under the matching path in the API reference. List endpoints are paginated and accept page, pageSize, search, sort, and order, returning { data, total, page, pageSize, hasMore }.

Tip

Evaluating Aethers? Create a site, add a rack, then place a device in it — the fastest path to seeing the model work end to end.
